DRAYTEK
DRAYTEK VigorAP 802 Dual Band Wall Plug PoE Access Point
Ürün Kodu: KAR-VigorAP 802
4.653,88 TL
KDV DahilStokta Yok
1
Interface |
|
| LAN Port | 1x 10/100/1000M Base-T, RJ-45 |
| Antenna | 2x Internal PiFA Dual-Band Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz |
| Button | 1x LED On/Off |
WLAN |
|
| 2.4GHz Standard | IEEE 802.11b/g/n |
| 5GHz Standard | IEEE 802.11a/n/ac |
| MIMO | 2x2 (2-stream) |
| 2.4G Link Rate | Up to 300 Mbps |
| 5G Link Rate | Up to 867 Mbps |
| Max. Number of Concurrent Active Clients | 64 (32 per band) |
| Operating Mode | AP, Mesh Node, Range Extender |
| Roaming | AP-Assisted Roaming, PMK-Caching, Pre-Authentication |
| Airtime Fairness | |
| Band Steering | |
| Auto Channel Selection | |
| Max. Number of SSID | 4 (2 per band) |
| WDS | |
| Bandwidth Limit per Station | |
| Client Number Limit | Per radio, Per SSID |
| Connection Time Control | |
| WMM | |
| IGMP Snooping | |
Security |
|
| Security Mode | WPA2, WPA2/WPA, WPA, WEP, None |
| Authentication | Personal, Enterprise |
| WPS | PIN, PBC |
| Hidden SSIDs | |
| MAC Address Filter | Up to 64 entries |
| Wireless Client Isolation | |
| Mobile Device Management | |
Application |
|
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP Client | |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| iOS Keep Alive | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
Management |
|
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorConnect, VigorAP Mesh Root |
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Tools | Speed Test, AP Discovery, Statistics, Interference Monitor |
| Notification Alert | |
| SNMP | v2, v2c, v3 |
| Syslog | |
| Managed by VigorConnect | |
| Managed by VigorACS | |
Physical |
|
| Environment | Indoor |

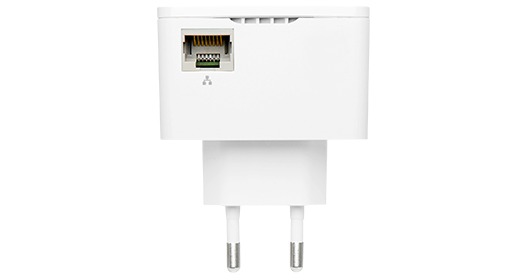

| Mounting | Wall Plug |
| Power Input | AC100-240V, 0.25A |
| Max. Power Consumption | 10.7 watts |
| Dimension (W x H x D) | 59mm x 91mm x 40mm (Power plug not included) |
| Weight | 130 g |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |   |
