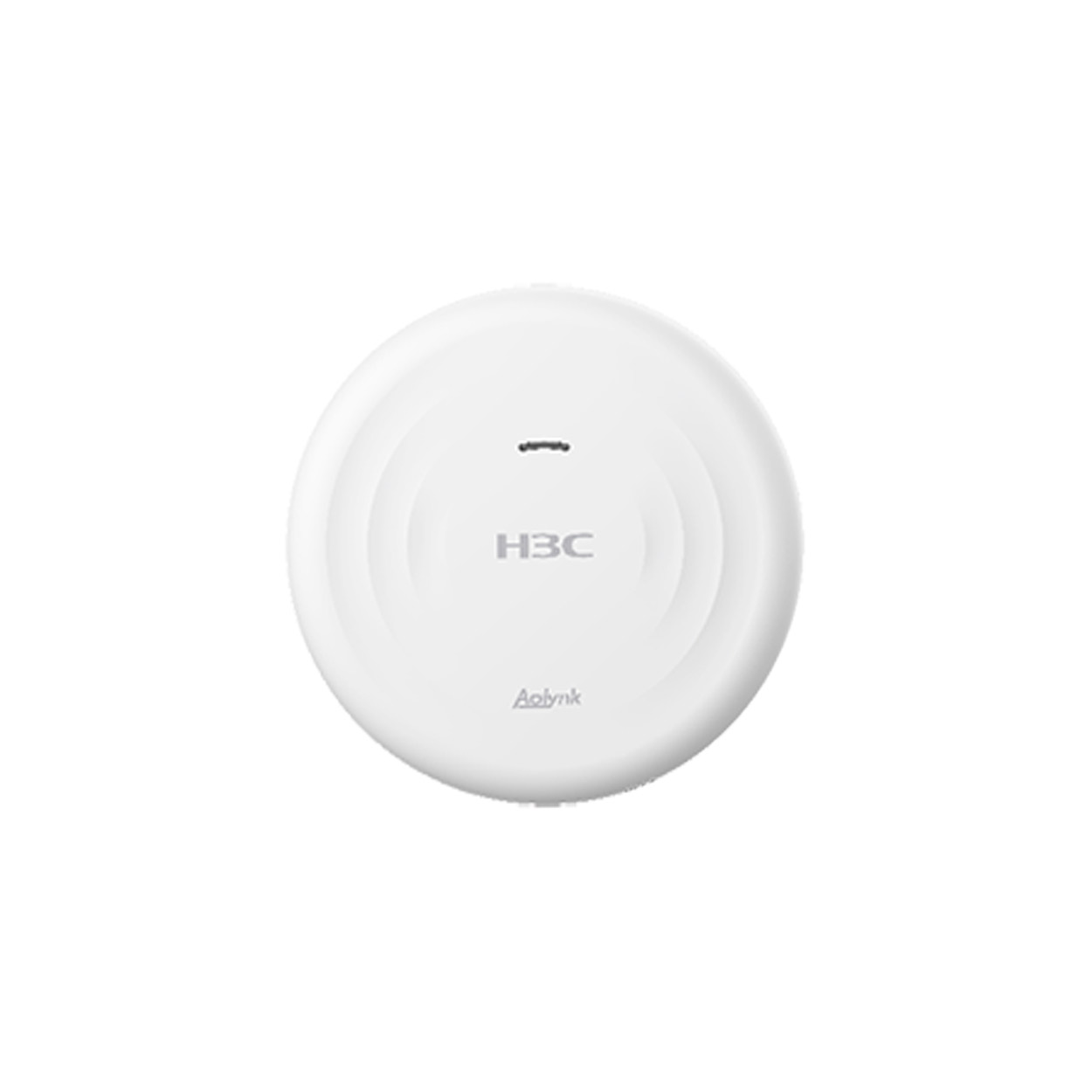

H3C Aolynk UAP622MG-AX30 (Wi-Fi6) Dual Band 574Mbps-2402Mbps 2x2 MIMO Tavan Tipi

Dimensions

220mm×220mm×35mm

Weight

380g

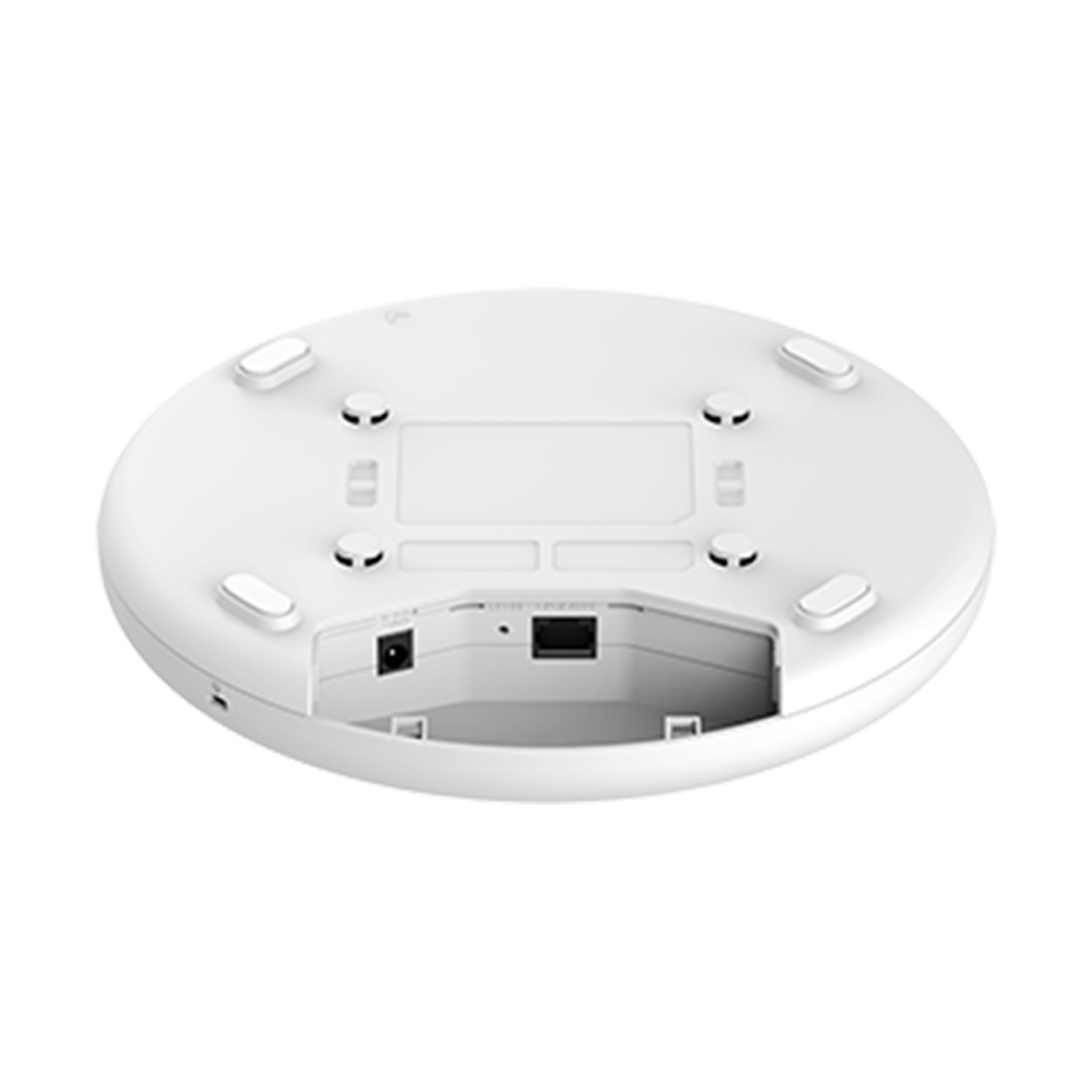

Fixed port

Uplink: 1 100/1000/2500Mbps auto-negotiated Ethernet uplink port (PoE powered)

PoE

Support 802.3at power supply

Case color

White

Built-in antenna

Built-in omni-directional antenna (2.4GHz: 3dBi; 5GHz: 4dBi)

Radio frequency&MIMO

Radio1: 5G, 2x2, 2402Mbps

Radio2: 2.4G, 2x2, 574Mbps

Working frequencies

2.400 to 2.4835GHzISM

5.150 to 5.250GHzU - NII - 1

5.250 to 5.350GHzU - NII - 2A

5.470 to 5.725GHzU - NII - 2C

5.725 to 5.850GHzU - NII - 3/ISM

Note: The available operating band varies according to the country of use of the device, depending on the country of final use of the device

Modulation technology

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps

Modulation mode

11b: DSSS: [email protected]/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps

11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Transmit power

2.4G: 23.5 dBm

5G: 22.5 dBm

Note: Antenna gain is not included, the actual power is adjusted according to different national regulations

Adjustable power granularity

10%

Operating temperature/storage temperature

0ºC ~ 45ºC/-40ºC ~ 70ºC

Operating humidity/storage humidity

5% to 95% (non-condensing)/ 5% to 95% (non-condensing)

Power consumption

≤13.5 W

MTBF

1959376 hrs

Certification

CE, CB, RoHS

802.11 protocol

802.11 a

802.11 b

802.11 d

802.11 e

802.11 g

802.11 h

802.11 I

802.11 n

802.11 ac

802.11 ax

802.11 k

802.11 v

WLAN security

RSN

WPA3

WPA2

WPA

TKIP

CCMP

Open system

PSK

MAC address Blacklist

MAC address whitelist

Blacklist of domain names

Wireless services

SSID configuration

Hide SSID configuration

RF binding wireless service

Bind service template to VLAN

User rate Limiting

Country code configuration

Radio frequency management

Power Settings

Channel Settings

DFS

RF switch

RF mode

WRRM

5G first

802.11g protection

802.11n protection

RRM

Automatic optimization, manual optimization

User isolation

VLAN-based user isolation

Weak signal optimization

Disable weak signal clients access

Actively triggers re-association of weak-signal clients

Wireless optimization

Roaming sensitivity adjustment

Maximum number of clients based on Radio

Network protocols

ARP

ARP SNOOPING

ICMP

NTP client

DNS client

TCP/UDP

DHCP Wi-Fi Server

DHCP Client

DHCP option 43

HTTP

IPV6 (only support IP address acquisition and data forwarding)

LLDP

802.1 q

VLAN

SSID-based VLAN

Port-based VLAN

Forwarding

Layer 2 forwarding

Self-organizing network

Self-organizing Network

Maintenance

Firmware brick recovery

Configuration and log collection

Port-based rate statistics

Terminal trend statistics based on wireless services

Traffic statistics based on wireless services

Radio-based terminal trend statistics

Radio-based Wi-Fi channel utilization statistics

Displays the IP addresses of all VLANs

PING tool

Traceroute

Connectivity Detection

Quickly detect gateway address

Equipment management

Change login password

AP indicator switch

Flashing light for AP

Configuration Import

Factory restore

Reboot

Timed reboot

Configure Aolynkcloud address and port

Self-unbind function

Set the date time and time zone

Self-organizing network switch

Change IP address of VLAN where the management Wi-Fi resides

Firmware upgrade

Online Upgrade

Offline upgrade

New firmware alert

User interface

Cloud management

Local Web management

Performance specifications

Maximum number of wireless terminal access is 256 (theoretical value)

Maximum SSID supported by all RFs is 8 (including 1 managed Wi-Fi)

Radio1: 0~8个；Radio2: 0~8个

Note: Users can freely combine the number of SSIDs supported under each radio frequency according to their actual needs.

Maximum number of network management devices in Self-organizing network is 32 (TM is AP)
