Hikvision
Hikvision DS-PDC10AM-VG3 Kablolu Perde Tipi Hırsız Alarm Pır Dedektörü
Ürün Kodu: AKN-51234
1.770,16 TL
KDV DahilStokta var (10 adet)
1

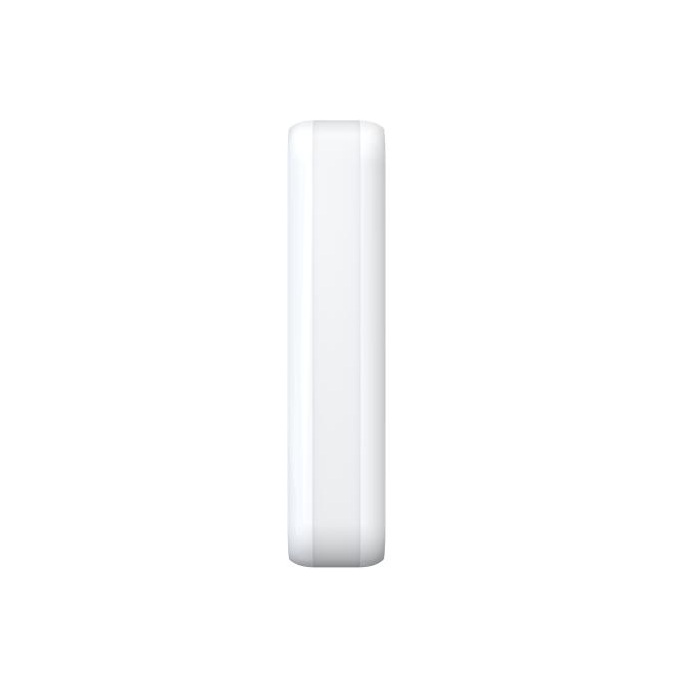

Wired PIR AM Curtain Detector
- · Slim design for window frame installation
- · IP65 weather resistance for outdoor application
- · Active IR anti-masking
- · Automatic sensitivity
- · Selectable EOL resistors for alarm and tamper-proof wiring
- · Directional detection support
- Detection Performance
- Detection Method Passive Infrared
- Detection Range
Wall Mount：10m
Ceiling Mount：6m
- Detection Angle 5°
- Detection Zones 32
- Detectable Speed 0.2～3m/s
- Sensitivity Auto
- White Light Filter 6500lux
- Digital Temperature Compensation Support
- Creep Zone Protection Support
- Anti-masking Support
- Feature
- Digital Processing Support
- Sealed Optics Support
- Tamper Protection Front;Rear
- Directional Detection Support
- Interface
- Alarm Output Normally Closed
- LED Indicator Blue(Alarm), Green+Orange(Mask)
- Transmission
- Transmission Method Wired
- Electrical Characteristics
- Power Supply 9 to 16 VDC
- Typical Voltage 12 VDC
- Power Consumption
Maximum current：22mA @12VDC
Quiescent current：9mA@12VDC
- General
- Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity 10% to 90%
- IP RateIP65
- Dimension(WxHxD) 29.2mm × 134.4mm × 39.5mm
- 77.5g
- Mounting Height 2 to 4m
- Mounting Method Wall;Ceiling
- Application Scenario Indoor,Outdoor
- Bracket L-shaped adapter included
