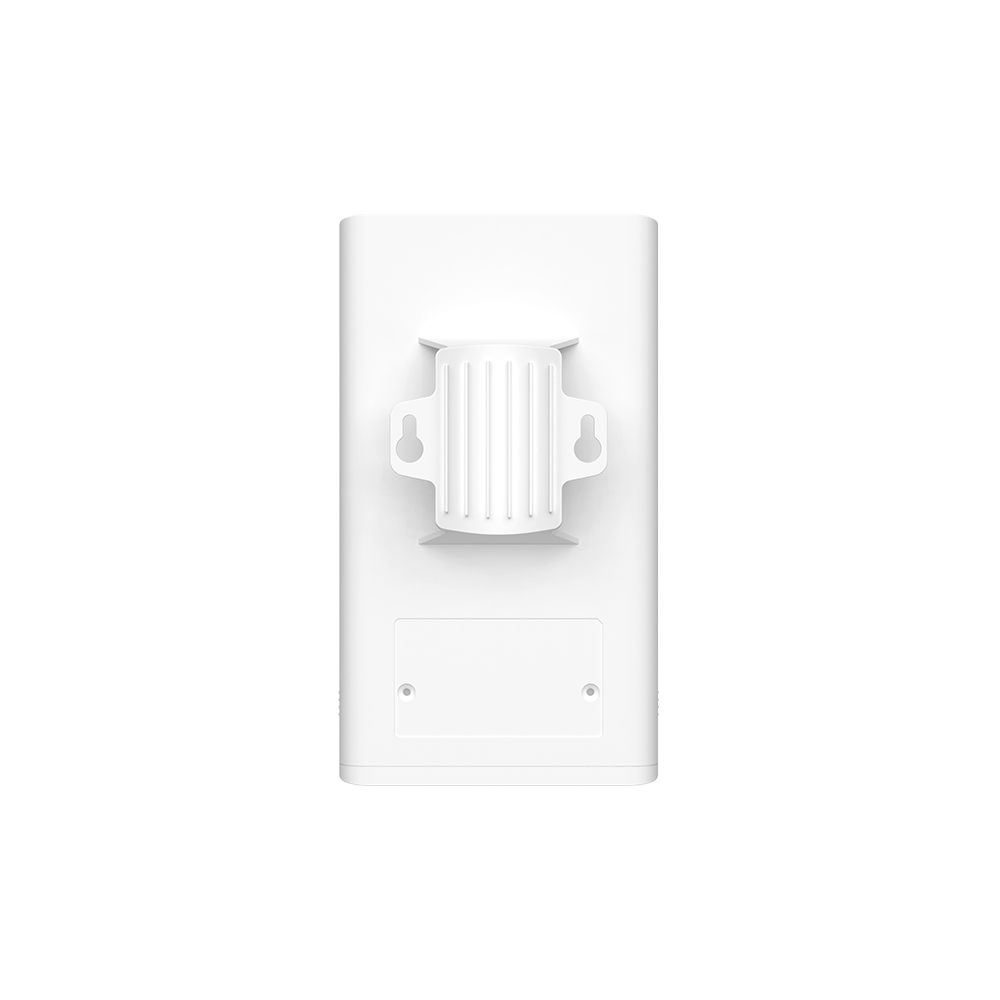

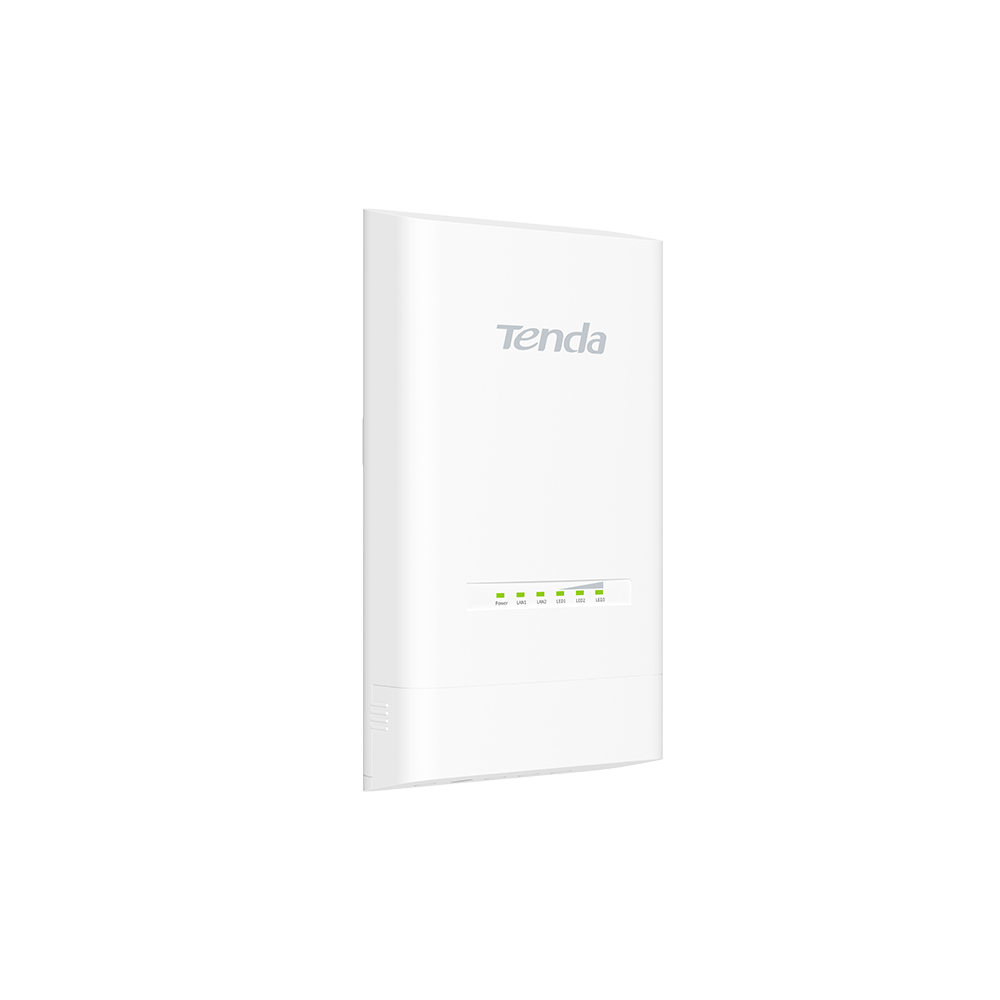

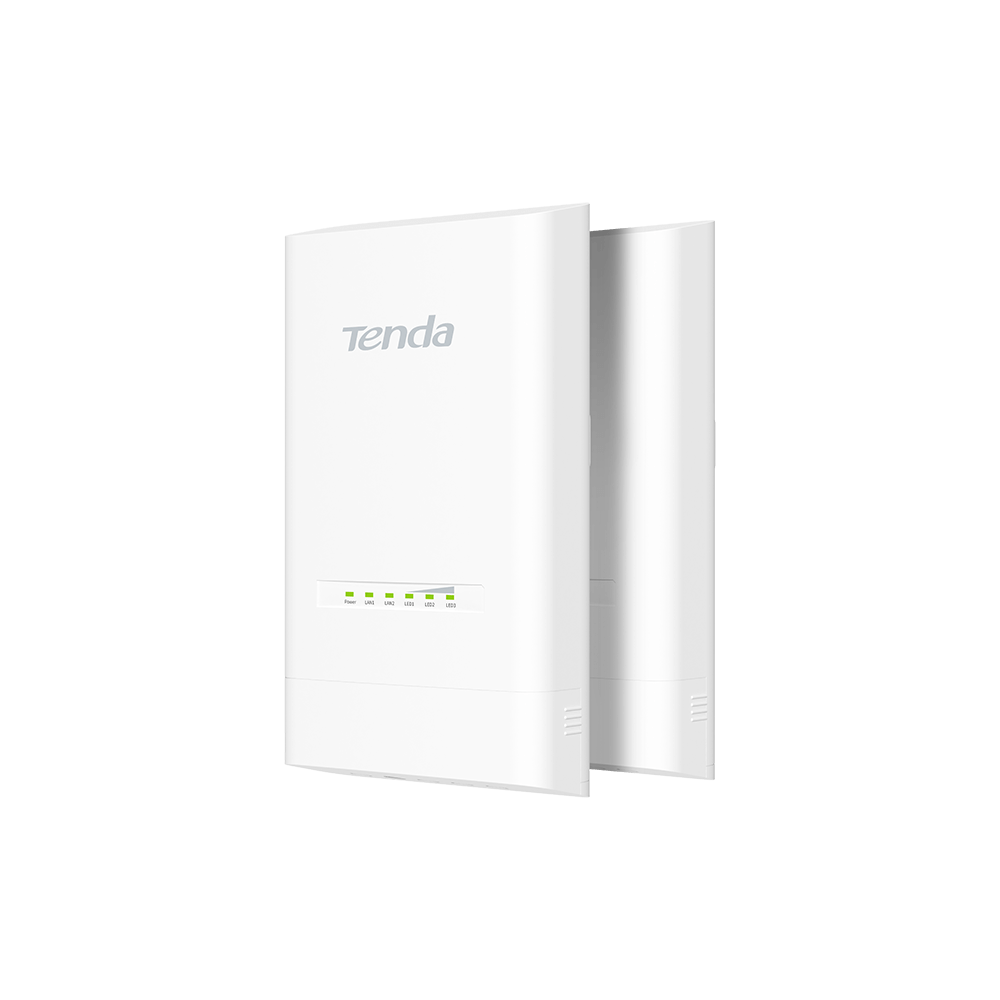

TENDA O4-KIT 5Ghz 867Mbps 5km Point to Point Outdoor CPE (2'li Set)

      Product Information

Model

  O4

Dimension

  193*109*61mm

Deployment

  Pole/Wall Mount

Application Scenarios

  PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

      Hardware

Frequency Range

  5GHz

Compliant Standards

  IEEE 802.11a/n/ac

Private TDMA Protocol

  TD-MAX

Maximum Wireless Rate

  867Mbps

Interfaces

  2*10/100/1000Mbps Ethernet Port

Antenna Polarization

  Dual Polarization

Antennas Gain

  12dBi

Antenna Beamwidth

  Horizontal: 30° Vertical: 30° Elevation: 30°

Reset Button

  1

Power Consumption

  6.5W

Waterproof Level

  IP65

LED Indicator

  Power, LAN1, LAN2, LAN3, LED1, LED2

Power Method

  PoE 802.3af/at
  12V 1A Passive PoE
  12V 1A DC

Lightning Protection

  6000V

Passive PoE

  Passive power over ethernet via PoE/LAN (+4, 5pins； -7, 8pins )
   up to 60 meters
  Voltage range: 9-24V DC

Reception Sensitivity

  11a 6Mbps -90dBm±1.5dBm
  11n MCS0 HT20 -70dBm±1.5dBm
  11n MCS7 HT20 -70dBm±1.5dBm
  11ac MCS9 HT80 -59dBm±1.5dBm

      Software

TDMA

  Support

Operating mode

  AP/Station/WISP/ Repeater/Router

Enable/Disable Wireless Radio

  Support

SSID Hidden

  Support

Wireless Client isolation

  Support

SSID Isolation

  Support

Channel Bandwidth

  20/40/80MHz

Client Limitation For SSID

  Support

Weak Signal Client Limitation

  Support

Wireless Access Control

  Support

Transmission Power

  Adjustable power by 1dBm

WMM Capable

  Support
