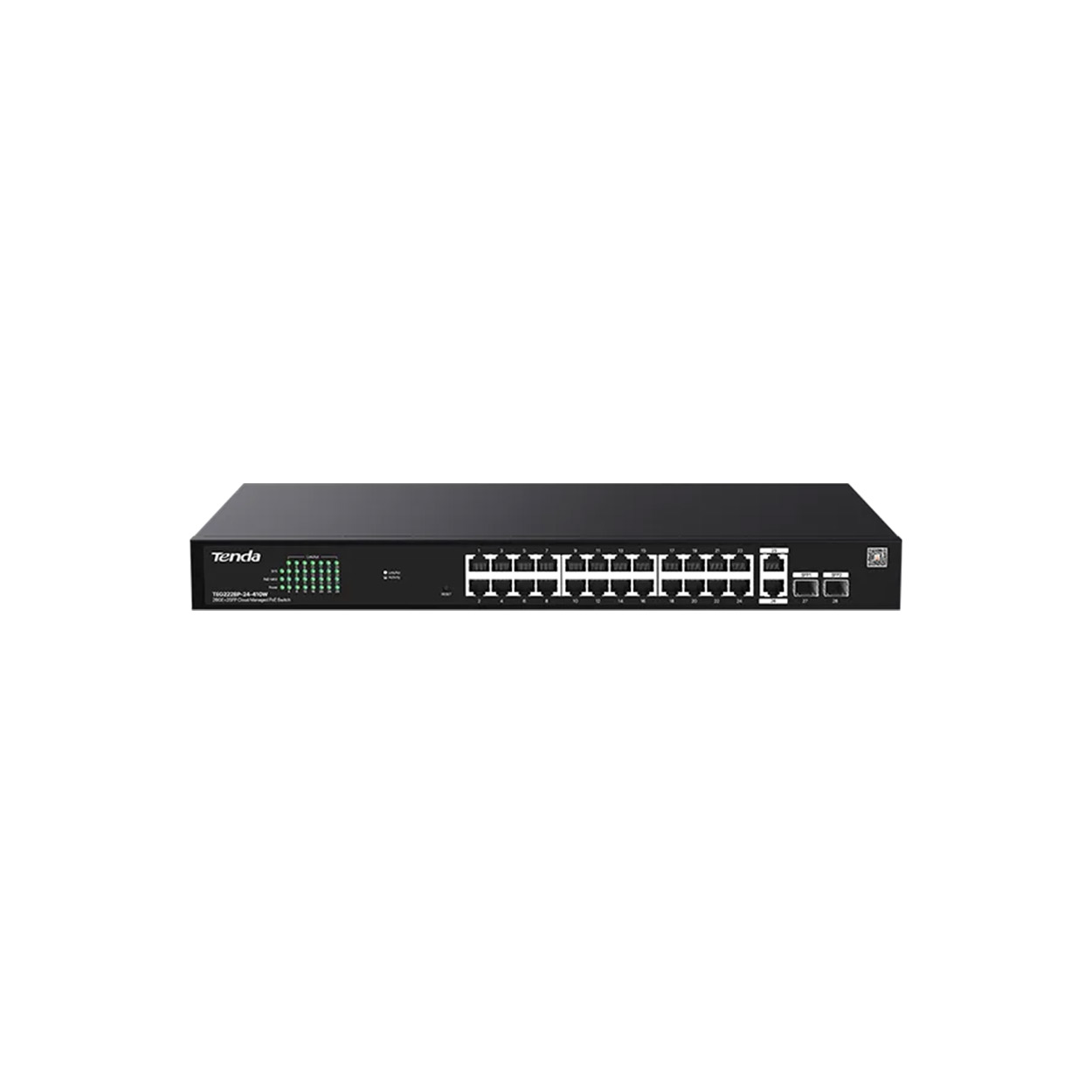

TENDA TEG228P-24-410W 24GE PoE Port (410W), 4xSFP Cloud Yönetilebilir Switch

      Hardware

Dimensions

  440mm*240mm*44mm

Mounting

  Rack mounting : support
  Desktop mounting: support
  Wall mounting: support

Enclosure material

  Metal

Interfaces

  (26) 1GE RJ45 ports
  (2) 1GE SFP ports

PoE interface

  (24) PoE(Pins 1, 2+,3, 6-)

LED Indicator

  Power
  Link/Act
  PoE MAX

Switching capacity

  56Gbps

Forwarding rate

  41.7Mpps

Power method

  100-240V AC，50 / 60Hz

Power consumption

  410W

Total available PoE

  30W

Max. PoE wattage per port by PSE

  370W

Lightning protection

  Port: 6 KV
  Power：6 KV

Button

  Factory reset

Operating temperature

  0°C - 45℃

Storage temperature

  -40°C - 70°C

Operating humidity

  10% - 90%,non-condensing

Storage humidity

  5% - 90%,non-condensing

Certifications

  FCC, CE, RoHS

      Software

VLAN

  Support VLAN transparent transmission
  Support IEEE802.1Q VLAN

Port

  Support port flow control
  Support port isolation
  Support port mirroring and aggregation
  Support port traffic statistics

Speed limit

  Support port entrance and exit speed limit

Anti-ring

  Support switch port loop protection

QoS

  Support strict priority
  Supports weighted priority

MAC

  Support MAC address table viewing
  MAC whitelist binding

Storm control

  Support port storm control

Loading and Upgrading

  Support HTTP upgrade
  Support configuration import and export

IGMP

  Supports lGMP fast leave
  Supports lGMP Report Suppression
