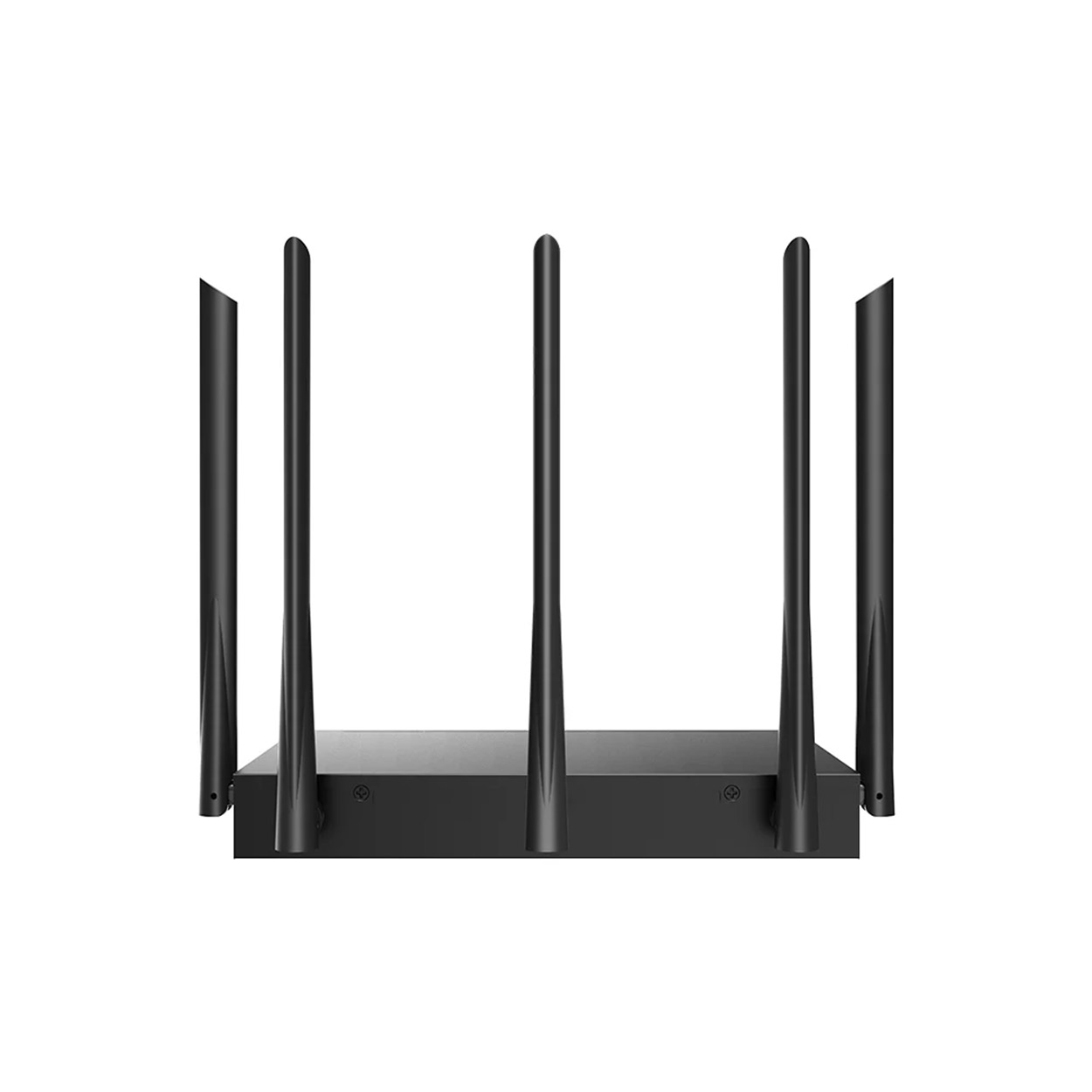

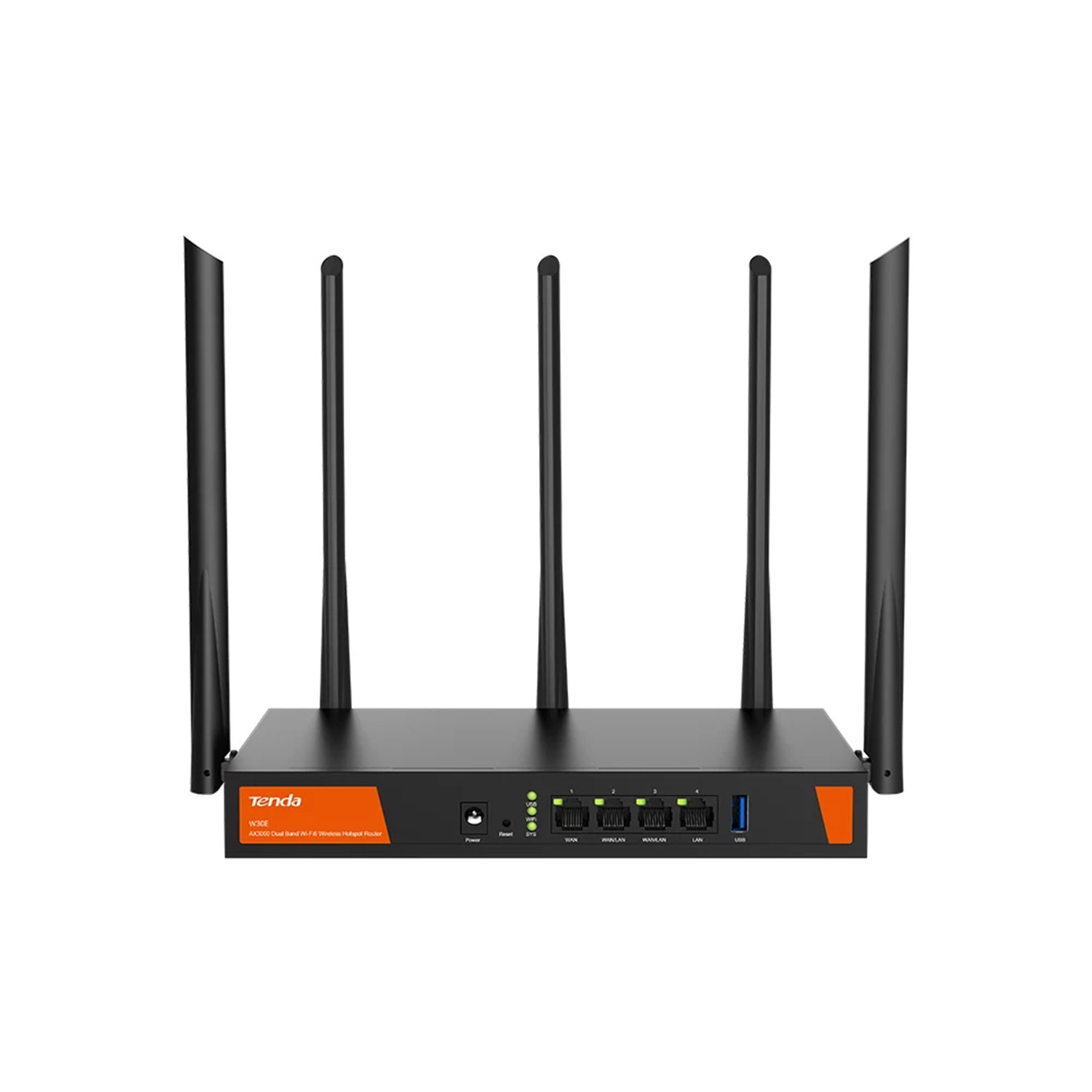

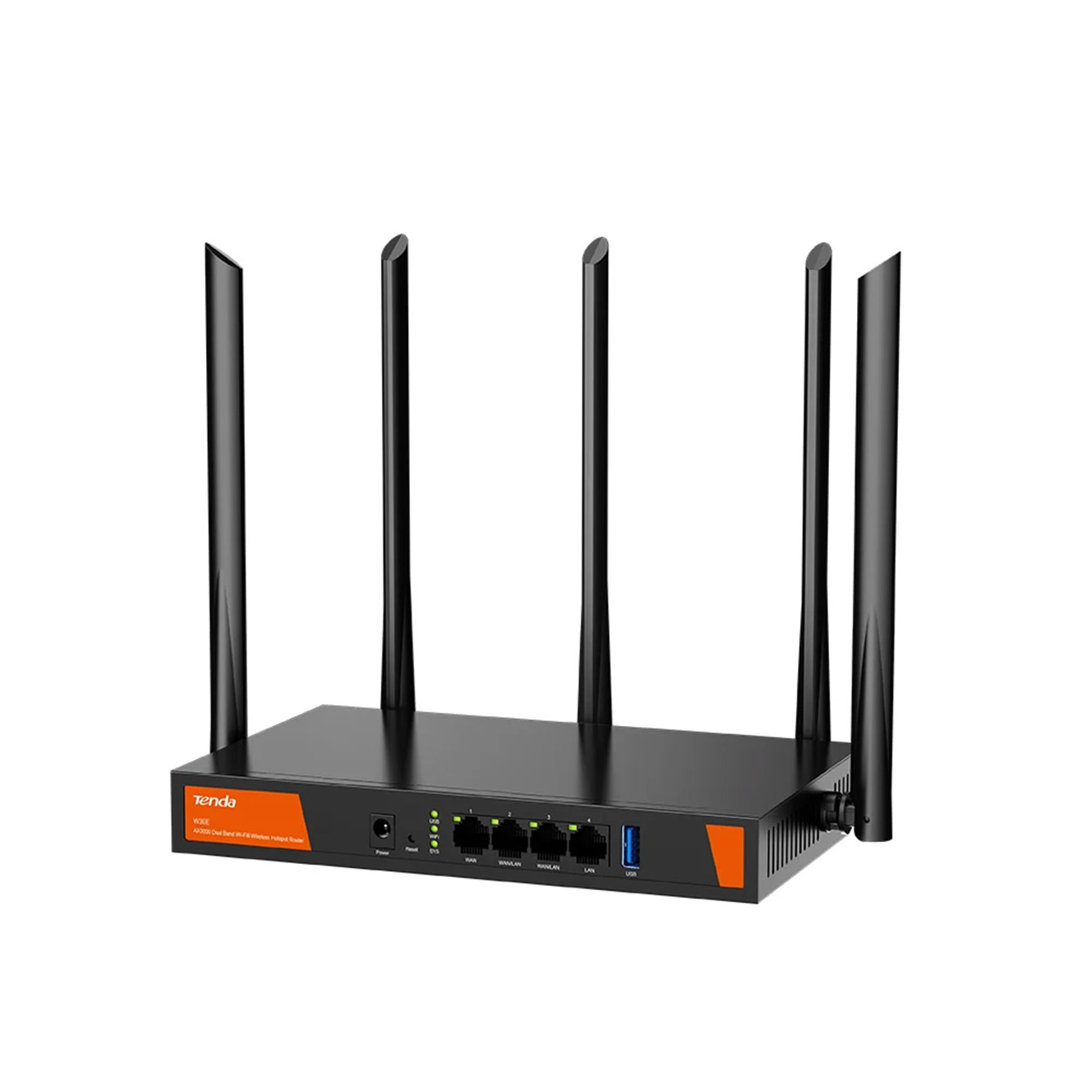

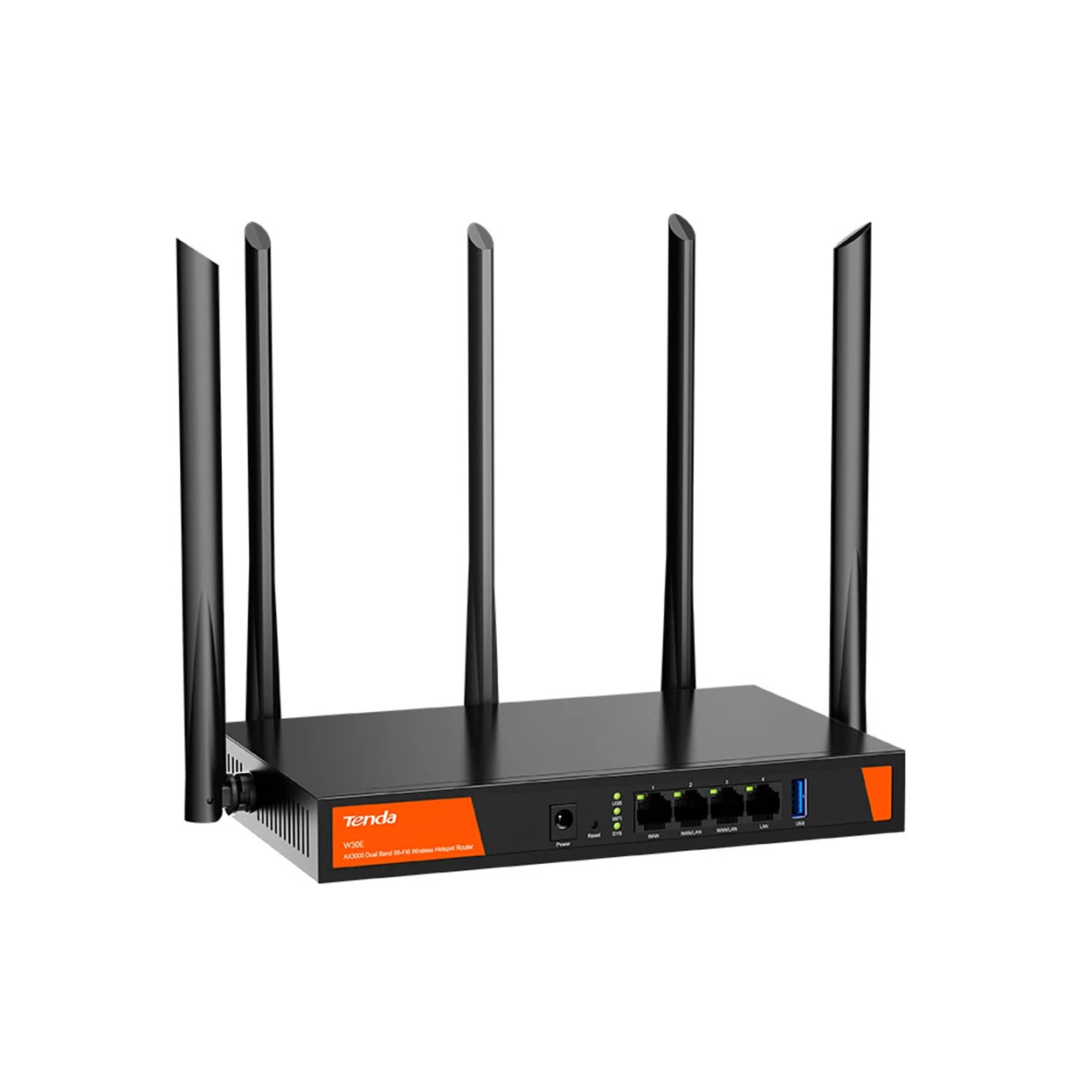

TENDA W30E 4GE Port AX3000 Dual Band Metal Hotspot Router

      Hardware

RAM

  256MB

Flash

  128MB

Interfaces

  4*GE(1~3 WAN/ 1~3 LAN)

Maximum Power Consumption

  18W

Button

  1* Reset button

Power

  12V 1.5A

Dimension

  220*135*30mm

      Wireless

Frequency

  2.4GHz/5GHz

Wireless Speed

  574+2402Mbps

      Software

Maximum user capacity

  200

Max Wireless Client Capacity

  80

Internet Connection Type

  PPPoE/DHCP/Static IP/Russian L2TP/India (PPPoE supports server name customization)

Authrization Service

  Captive Portal

Captive Portal

  50 Portal Accounts
  Customize E-bulletin

Bandwidth

  Smart Bandwith Control
  Manual Definition

Internet Access Control

  IP/mac/URL Filter

VPN Protocal

  PPTP/L2TP/IPSEC

Port Forwarding

  Port Forwarding
  DMZ

Security Setting

  IP-MAC Binding
  ARP Attack Protection

DDNS

  no-ip/dyndns

UPNP

  Support

Firmware Upgrade

  Local/online Upgrade

System Tool

  Schedule Reboot
  Restore or Backup Configuration

Network Status View

  Traffic Statistics
  Network structure topology

Signal Extension

  Support

      Others

Package Contents

  Wireless Router*1
  Power Adapter *1
  Install Guide*1

Web Login Address

  tendawifi.com or 192.168.0.1

Operation Temperature

  0℃ ~ 40℃
