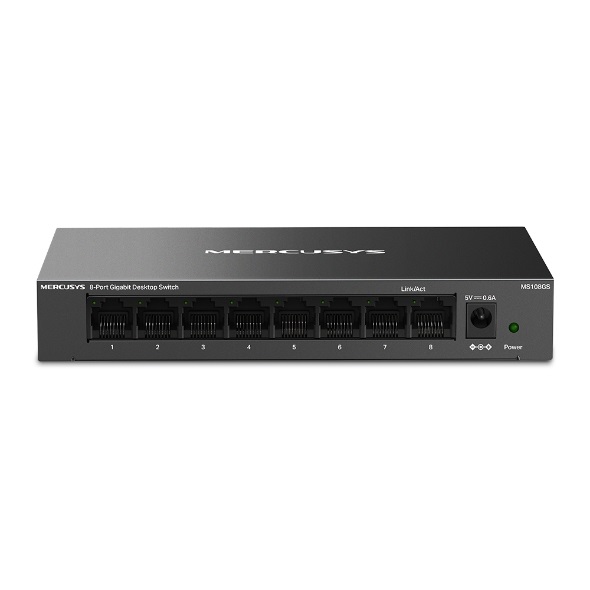

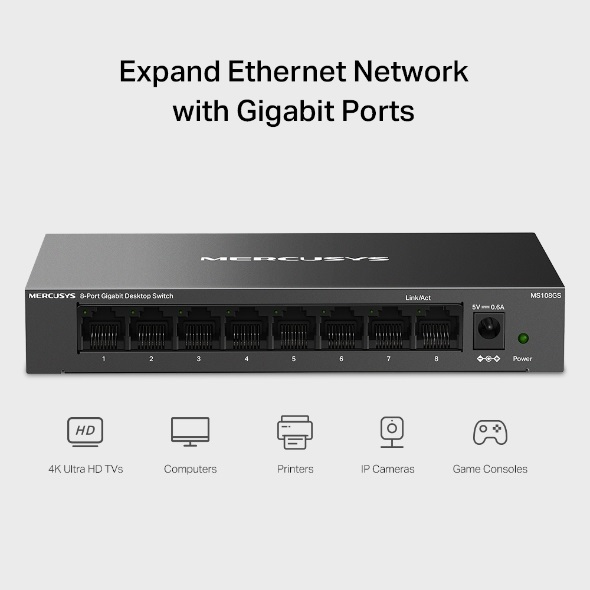

Tp-Link Mercusys MS108GS 8 Port 10/100/1000 Mbps Gigabit Switch

Full Gigabit Ports: 8× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX

Multiple Installation Operation: Steel housing, desktop or wall-mounting design

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Plug and Play: Simple to use and saves time and effort

Power Saving: Green Ethernet technology saves power



Software

Transfer Method

Store and Forward



Hardware

Boyutlar (E X B X Y)

6.2 × 3.9 × 1.0 in



Arayüzler

8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX



Harici Güç Kaynağı

5V/0.6A



Standartlar ve Protokoller

IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD



Data Rates

10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex

Buffer Capacity

4 Mbit



Jumbo Frame

15 KB



LED



Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power





Diğerleri

Package Contents



• 8-Port Gigabit Desktop Switch (MS108GS)
• Power Adapter
• Quick Installation Guide
