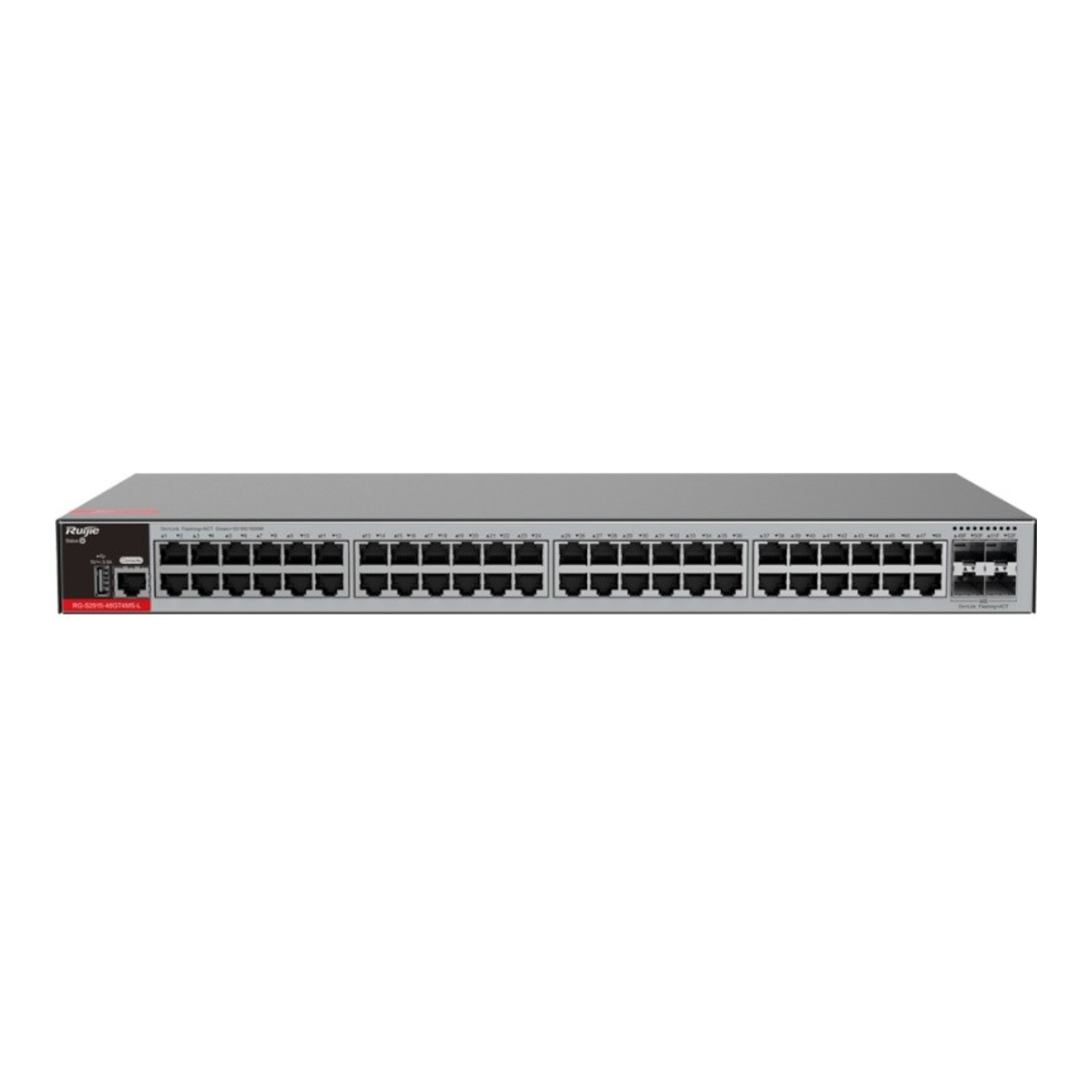

Interface specifications RG-S2952G-E V3
Solidify service interfaces		48 10/100/1000M adaptive electrical ports, 4 1G SFP optical ports
System specifications
Exchange capacity		672Gbps/6.72Tbps
Package forwarding rate		166Mpps/219Mpps
Dimensions and weight
Product size (width× depth× height)	V1. XX/V2. XX version: 443.0mm x 268.0mm x 44.5mm V3. XX and above: 440mm x 220mm x 44mm
Power & Power Consumption
Number of curing power supplies		Curing single AC power supply
Rated input voltage	Alternating Current (AC) Input: 100V~240V, 50/60Hz
Maximum input voltage	Alternating Current (AC) Input: 90V~264V
Input voltage	High Voltage Direct Current (HVDC) Input: 192V~290V
The power consumption of the whole machine		≤40W
Environment & Reliability
Communication interface lightning protection	Common mode 6KV (V3.XX and above: 10KV)
Power port lightning protection	Common mode 6KV, differential mode 6KV
Operating temperature	Long-term: 0°C~50°C Short-term: -5°C~55°C
Storage temperature	-40℃~70℃
Operating humidity	10%~90%, 5%~95% (no condensation)
Storage humidity	5%~95%
Fan monitoring			Support fan speed adjustment and fan fault alarm functions

Software specifications

Software specifications		RG-S2952G-E V3
MAC address table	Static MAC addresses are supported MAC address filtering is supported
802.1Q VLAN	Supports 4K 802.1Q VLANs Port based VLAN is supported MAC based VLAN is supported Protocol based VLAN is supported Support for Private VLANs Voice VLAN is supported IP subnet-based VLAN is supported GVRP is supported
QinQ	Supports basic QinQ Supports flexible QinQ
Two-layer ring network technology	It supports G.8032 international standard ring network protocol ERPS, with a switching time of ≤ 50ms, and is compatible with other products that support this protocol Support STP RSTP supported Support MSTP
Port aggregation	Support traffic balancing mode Supports LACP dynamic aggregation You can configure the LACP priority, negotiation method, and maximum number of aggregable ports Support for cross-VSU APs
Mirror	Supports normal service ports and aggregation ports as source and destination ports for images Supports stream-based, VLAN-based port mirroring It supports one-to-one, one-to-many, and many-to-one images, and supports RSPAN and ERSPAN Supports cross-device traffic mirroring
DHCP	DHCP Server is supported DHCP Client is supported DHCP Snooping is supported DHCP Relay is supported IPv6 DHCP Snooping is supported IPv6 DHCP Client is supported IPv6 DHCP Relay is supported
VSU characteristics	VSU virtualization technology is supported Supports both local and remote stacking Virtualization through standard business ports is supported
Zero configuration	It supports CWMP (TR069) protocol standard protocol
IP routing	IPv4/IPv6 static routing RIP、RIPng、OSPFv2、OSPFv3 Routing Policy
ACL	Support for standard IP ACLs (IP address-based hardware ACLs) Extended IP ACLs (hardware ACLs based on IP addresses and TCP/UDP port numbers) Support MAC Extension ACLs (hardware ACLs based on source MAC address, destination MAC address, and optional Ethernet type) Support time-based ACLs Support for expert-level ACLs (hardware ACLs that can be flexibly combined based on VLAN number, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, time, etc.) ACL80 is supported IPv6 ACL is supported Support for global ACLs ACL redirection is supported
IPv6 basic protocol	IPv6 Addressing, Neighbor Discovery Protocol (ND), ICMPv6, IPv6 Ping, IPv6 Tracert, etc
QoS	Support port traffic identification Supports port traffic rate limiting Support 802.1P/DSCP/TOS traffic classification 8 priority queues per port It supports SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, and RED/WRED queue scheduling
Safety features	It supports IP, MAC, and port binding It supports IPv6, MAC, and port binding Filter illegal MAC addresses Support port-based and MAC-based 802.1x MAB is supported Portal and Portal 2.0 certification are supported ARP Check is supported DAI supported Support ARP packet rate limiting Supports anti-gateway ARP spoofing Support broadcast storm suppression Administrator hierarchical management and password protection RADIUS and TACACS+ are supported AAA Security Authentication for Device Login Management (IPv4/IPv6) Supports SSH and SSH V2.0 BPDU Guard is supported IP Source Guard is supported Support CPP and NFPP Supports port protection

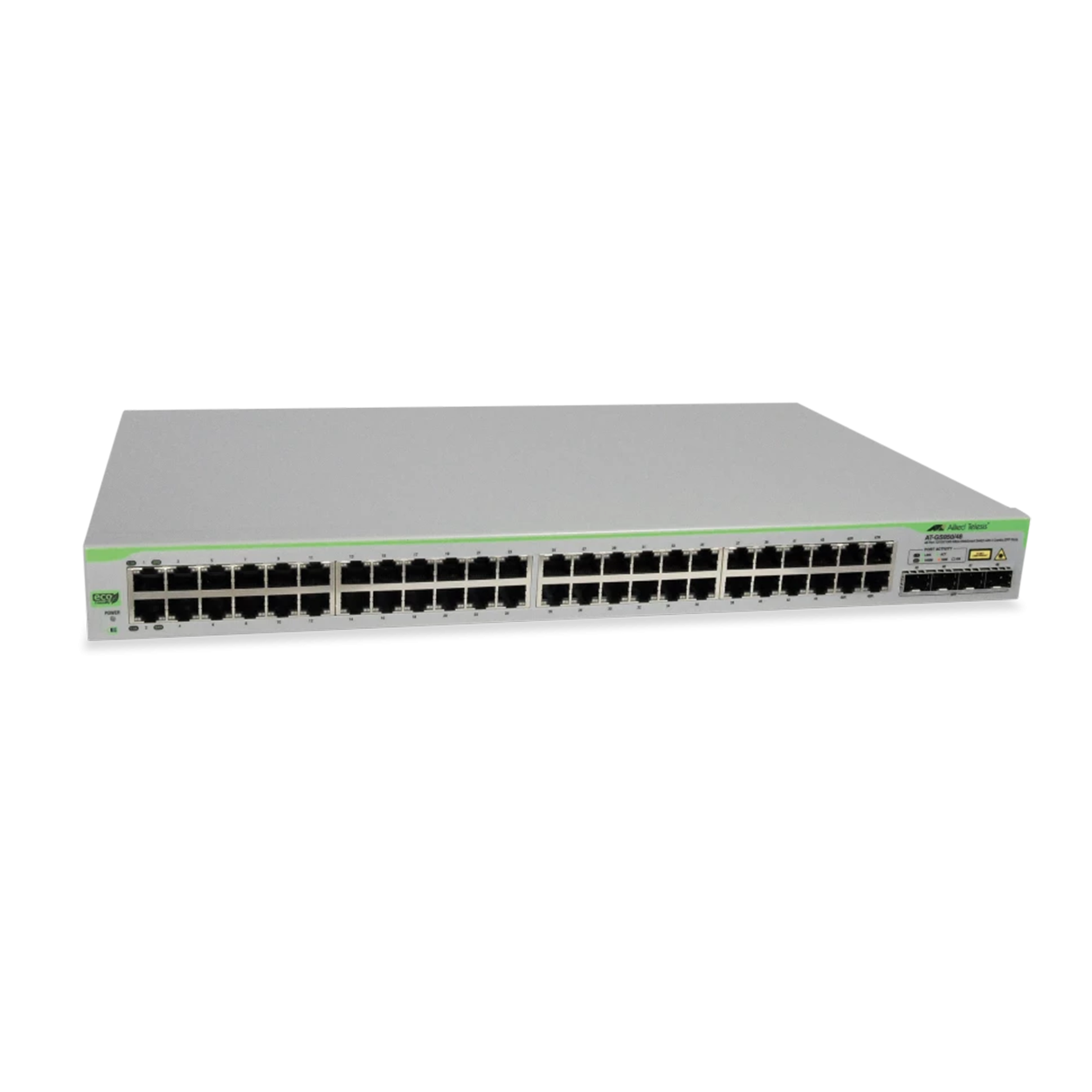

ALLIED TELESIS AT-GS950/48-50 48GE Port, 4x SFP WebSmart Switch
