Özellik	Açıklama
Port Özellikleri	20 x 1GE/2.5GE/10GE SFP+ portları, 4 x 10GE/25GE SFP28 portları, 2 x 40GE QSFP+ portları
Modül Yuvası	2 x güç modülü yuvası, 2 x fan güç modülü yuvası
Güç Modülü	RG-PA150I-F
Fan Modülü	M1SFAN I-F (2 önceden takılı)
Yönetim Portları	1 x RJ45 konsol portu, 1 x RJ45 MGMT portu
USB Portu	1 x USB portu
Paket Yönlendirme Hızı	570 Mpps
Anahtarlama Kapasitesi	760 Gbps
Bellek	1 GB RAM, 1 GB Flash bellek
MAC Adresi Tablosu	32,768
IPv4 Yönlendirme	16,000 IP yönlendirmesi
IPv6 Yönlendirme	16,000 IPv6 yönlendirmesi
Boyutlar (En x Derinlik x Yükseklik)	440 mm x 330 mm x 43.6 mm (1U)
Ağırlık	4.6 kg (boş kasa, 2 fan modülü ile)
Güç Tüketimi	Maksimum 85 W
Çalışma Sıcaklığı	0°C ile 50°C arasında (32°F ile 122°F)
Fan Modülü Yedekliliği	1+1 yedeklilik
Güç Modülü Yedekliliği	1+1 yedeklilik
MTBF (Hata Süresi)	200,000 saat (yaklaşık 22 yıl)
Güvenlik	SSHv1, SSHv2, HTTPS, RADIUS, TACACS+, 802.1X Port ve MAC tabanlı kimlik doğrulama
Yedeklilik ve Güvenilirlik	Güç modülü, fan, sıcaklık ve güç izleme ile yedekleme ve alarm özellikleri
Akustik Gürültü	≤ 78 dB
Sertifikalar	IEC 62368-1, EN 300386, EN 55032, EN 55035, EN IEC 61000-4 serileri
Ağ İzleme ve Yönetim	SNMP v1/v2/v3, sFlow, NETCONF, gRPC, Cloud ve SON desteği

Hardware Specifications
Port Specifications	RG-CS86-20XS4VS2QXS-D
Fixed service port	20 x 1GE/2.5GE/10GE SFP+ ports
	4 x 10GE/25GE SFP28 ports
	2 x 40GE QSFP+ ports
	Note: One switch provides a maximum of 32 x 10GE ports.
Module slot	2 x power module slots
Module slot	2 x fan power module slots
Power module	RG-PA150I-F
Fan module	M1SFAN I-F (pre-installed 2)
Fixed management port	1 x RJ45 console port
Fixed management port	1 x RJ45 MGMT port
USB	1 x USB port

System Specifications	RG-CS86-20XS4VS2QXS-D
Packet forwarding rate	570 Mpps
Switching capacity	760 Gbps
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash memory	1 GB (storing boot software for 1+1 boot redundancy)
Memory	1 GB
MAC address table size	32,768
ARP table size	16
Number of IPv4 unicast routes	16
Number of IPv4 multicast routes	4
Number of IPv6 unicast routes	16
Number of IPv6 multicast routes	2
Number of ACEs	In: 2,500
Number of ACEs	Out: 1,000
Number of VSU members	2


Dimensions and Weight	RG-CS86-20XS4VS2QXS-D
Unit dimensions (W x D x H)	440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.)
Shipping dimensions (W x D x H)	545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.)
Rack height	1 RU
Unit weight	4.6 kg (10.14 lbs) (empty chassis with 2 fan modules)
Shipping weight	6.40 kg (14.11 lbs) (empty chassis with 2 fan modules)

Power Supply and Consumption	RG-CS86-20XS4VS2QXS-D
Power supply	2 x pluggable power modules
Power module redundancy	1+1 power redundancy
Power input	RG-PA150I-F (AC input):
	● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
	● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
	● Maximum input current: 3 A
Maximum output power	RG-PA150I-F: 150 W
Maximum power consumption	85 W

Environment and Reliability	RG-CS86-20XS4VS2QXS-D
Temperature	Operating temperature: 0°C to 50°C (32°F to 122°F)
Temperature	Storage temperature: –40°C to +70°C (–40°F to +158°F)
Humidity	Operating humidity: 10% to 90% RH (non-condensing)
Humidity	Storage humidity: 5% to 95% RH (non-condensing)
Altitude	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Altitude	Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Mean time between failure (MTBF)	200,000 hours (about 22 years)
Fan	2 x pluggable fan modules
Fan redundancy	1+1 redundancy
Heat dissipation	Fan cooling, front-to-rear airflow
Acoustic noise	≤ 78 dB
Power module hot swapping	Supported
USB hot swapping	Supported
Cable hot swapping	Supported
Power supply monitoring	Monitoring of power supply model and status
Power supply monitoring	Power supply failure alarming
Fan monitoring	Fan speed regulating and alarm function
Temperature monitoring	Temperature alarming
ESD	ESD Contact/Air Discharge: 6kV/8kV
ESD	ESD Susceptibility Contact/Air Discharge: 8 kV/15kV
Surge protection	MGMT port: 4 kV
	Service port: 10 kV
	Power port: common mode 6 kV, differential mode 6 kV
Conformal coating	Conformal coating supported (key components only)

Certifications and Regulatory Compliance	RG-CS86-20XS4VS2QXS-D
Safety regulation	IEC 62368-1
EMC regulation	EN 300386, EN 55032 Class A, EN 55035,
	EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
	EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Software Specifications
RG-CS86-20XS4VS2QXS-D
Feature	Description
Ethernet Switching	Jumbo frame (maximum length: 9,216 bytes)
	IEEE 802.1Q (supporting 4K VLANs)
	Voice VLAN
	Super VLAN, private VLAN
	MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN
	GVRP
	Basic QinQ
	STP, RSTP, and MSTP
	ERPS (G.8032)
	LLDP/LLDP-MED
	LACP (IEEE 802.3ad)
IP Service	ARP
	DHCP client, DHCP relay, and DHCP server
	DHCP snooping
	DNS
	DHCPv6 client and DHCPv6 relay
	DHCPv6 snooping
	Neighbor Discovery (ND) and ND snooping
IP Routing	Static routing
	RIP and RIPng
	OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
	BGP4 and BGP4+
	IPv4 and IPv6 VRF
	IPv4 and IPv6 PBR
	Equal and Weighted Cost Multi-Path (ECMP)
Multicast	IGMP v1/v2/v3, and IGMP proxy
	IGMP v1/v2/v3 snooping
	PIM-DM, PIM-SM, and PIM-SSM
	MSDP
	MLD v1/v2
	MLD snooping v1/v2
	PIM-SMv6 and PIM-SSM v6
	IGMP filtering, IGMP immediate leave
ACL and QoS	Standard IP ACLs
	Extended IP ACLs
	Extended MAC ACLs
	Time-based ACLs
	Expert-level ACLs
	ACL80
	IPv6 ACL
	ACL redirection
	Port traffic rate limiting
	Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
	Congestion avoidance: tail drop, RED, and WRED
	802.1p/DSCP/ToS traffic classification
	Eight priority queues per port
Security	Multiple AAA modes
	RADIUS and TACAS+
	Port-based and MAC-based 802.1x authentication
	Web authentication
	HTTPS
	SSHv1, SSHv2
	Global IP-MAC binding
	Port isolation and port security
	IP source guard
	SAVI
	CPP and NFPP
	Strict and loose RPF
Reliability	REUP, RLDP, DLDP
	IPv4 VRRP v2/v3 and IPv6 VRRP
	BFD
	Hot swapping of power modules and cables
	3-level fan speed adjustment
	Fan fault alarm
Device virtualization	VSU
NMS and maintenance	SPAN, RSPAN, and ERSPAN
	sFlow
	NTP and SNTP
	FTP and TFTP
	SNMP v1/v2/v3
	RMON (1, 2, 3, 9)
	Telnet
	NETCONF
	CWMP (TR-069) standard protocol
	gRPC
	Cloud and SON

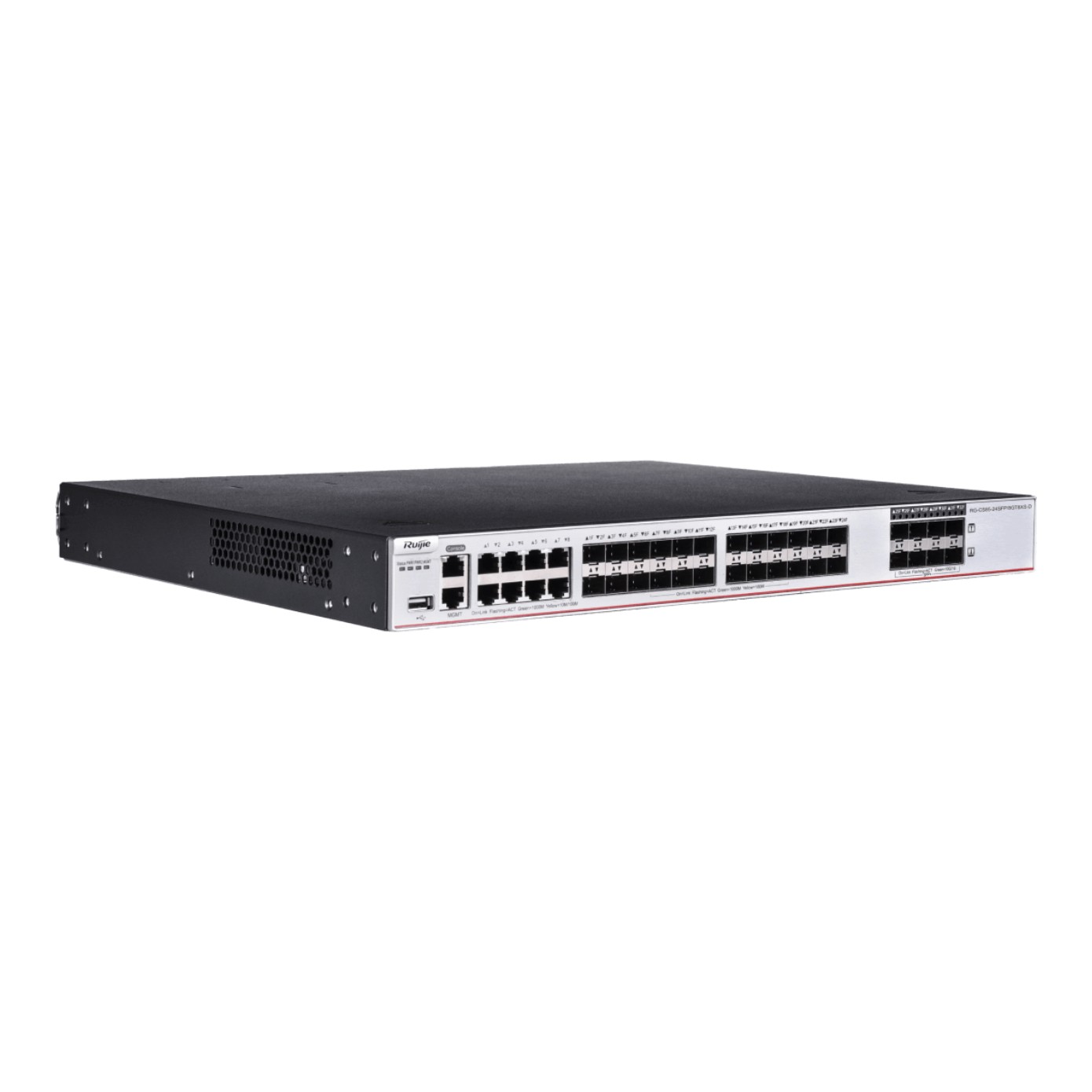

RUIJIE RG-CS85-24SFP/8GT8XS-D 24GExSFP, 8GE Combo, 8x10G SFP+ L3 Yönetil

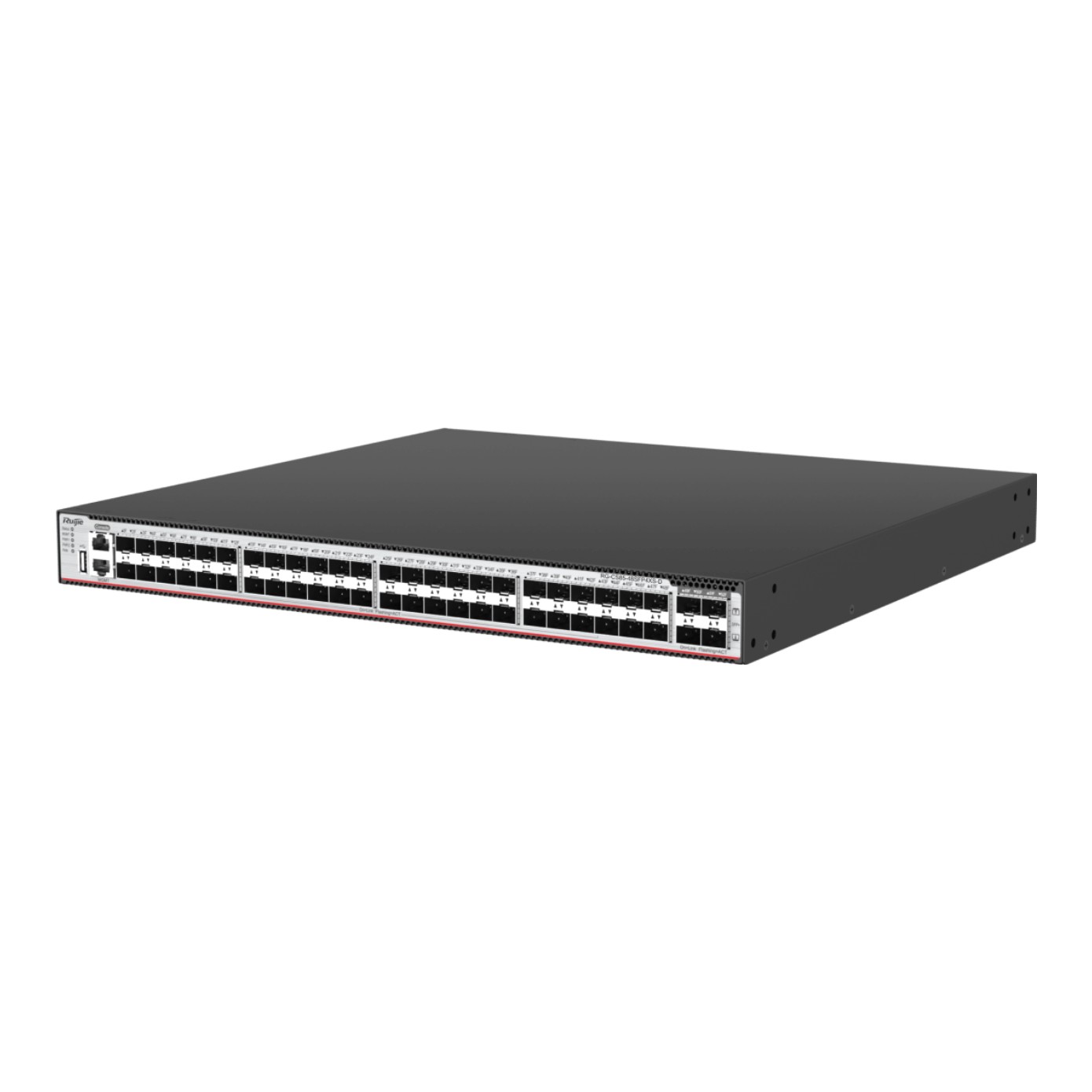

RUIJIE RG-CS85-48SFP4XS-D 48GE SFP, 4X10G SFP+ L-3 Yönetilebilir Swit

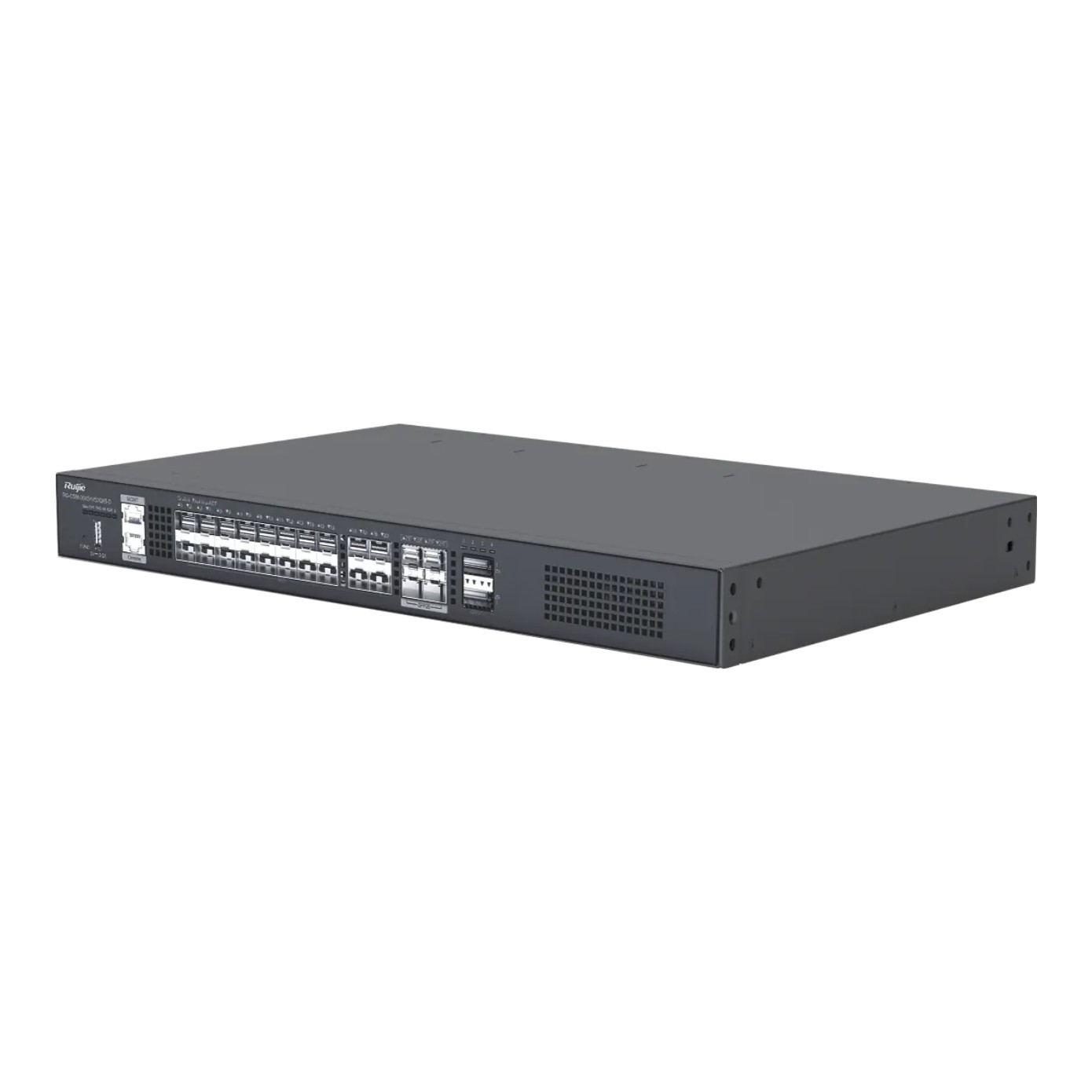

RUIJIE RG-CS86-20XS4VS2QXS-D 20x10GExSFP, 4x25GExSFP, 2x40GE QSFP+ L3 Yönetil
